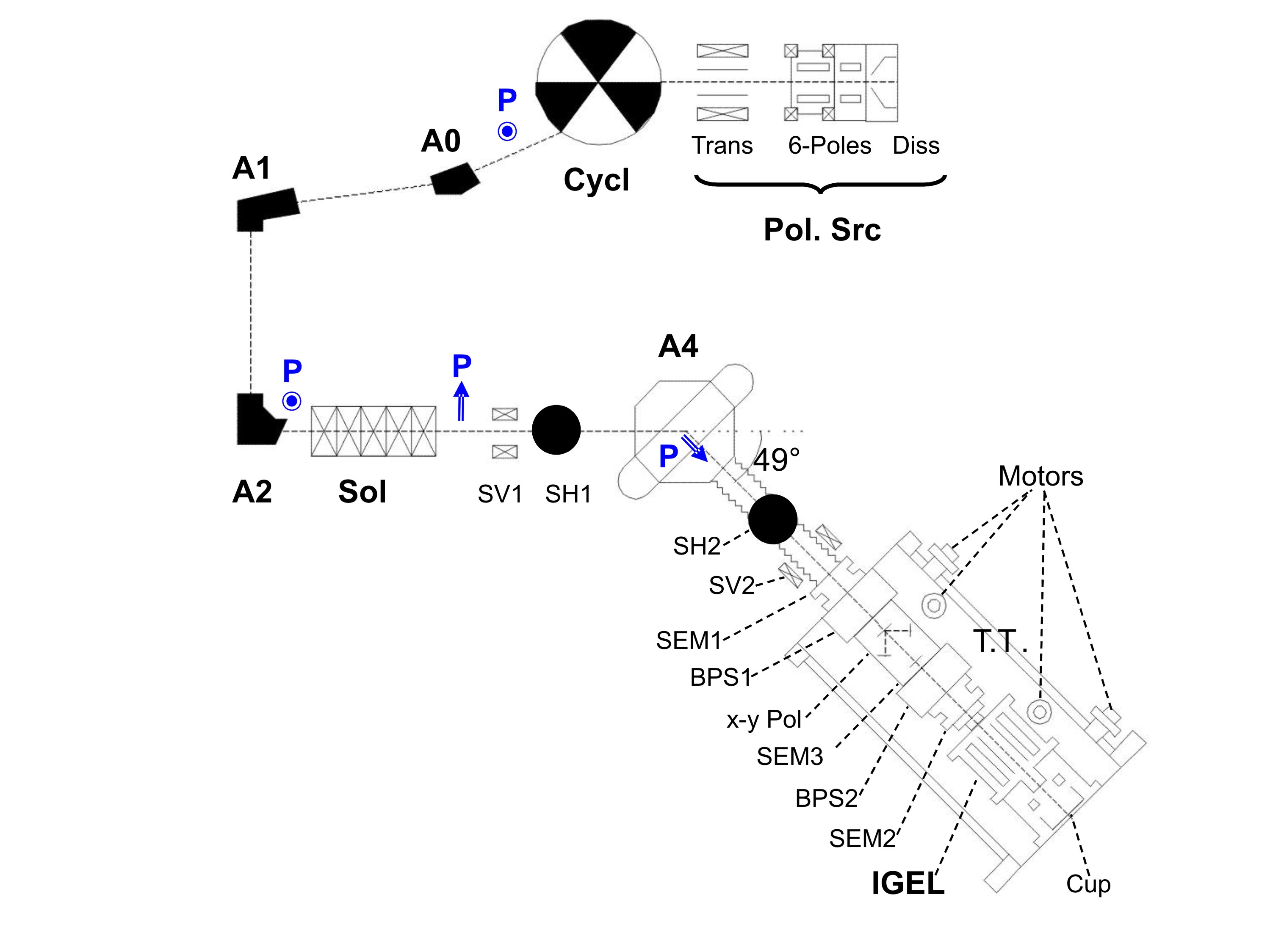

Home: Collaboration List The Parity Experiment for Pedestrians The Parity Experiment in Details Gallery References Acknowledgements Gallery / From the Source to the Experiment: / Pic 1: |
|
|
|
|
The Floorplan from the Source to the Experiment
|
|||
| Pol.Src | - | Source for polarized protons and deuterons | |
| Trans | - | RF-Transitions populate the proper hyperfine states | |
| 6-Poles | - | 6-Pole magnets focus the states with the electron spin parallel to the magnetic field | |
| Diss | - | RF-dissociator disintegrates the hydrogen molecules | |
| Cycl | - | The Bonn Isochronous Ischronnous Cyclotron | |
| A0-A4 | - | Bending magnets | |
| Sol | - | Solenoid rotates the proton spin into the plane of the beam-line | |
| P | - | Direction of the polarization | |
| SV, SH | - | Vertical or horizontal steerer magnets stabilize the position and angle of the proton beam | |
| SEM | - | Secondary-Electron-Monitors detect deviations from the set-axis of the beam | |
| BPS | - | Beam-Profile-Scanners measure x-y polarization distributions of the beam cross section | |
| x-y Pol | - | x-y Polarimeter helps to tune the source and the solenoid | |
| IGEL | - | Hydrogen gas target at 12 bar with integrated up/down and left/right ionization chambers | |
| Cup | - | Faraday cup; measures the proton beam current | |
| T.T. | - | Target table is the common support of the SEMs, BPSs, x-y polarimeter, target and cup | |
| Motors | - | Motors to align the T.T. with the help of the SEMs |
